RunAction Class Reference

#include <RunAction.hh>

Inheritance diagram for RunAction:

Inheritance graph
[legend]

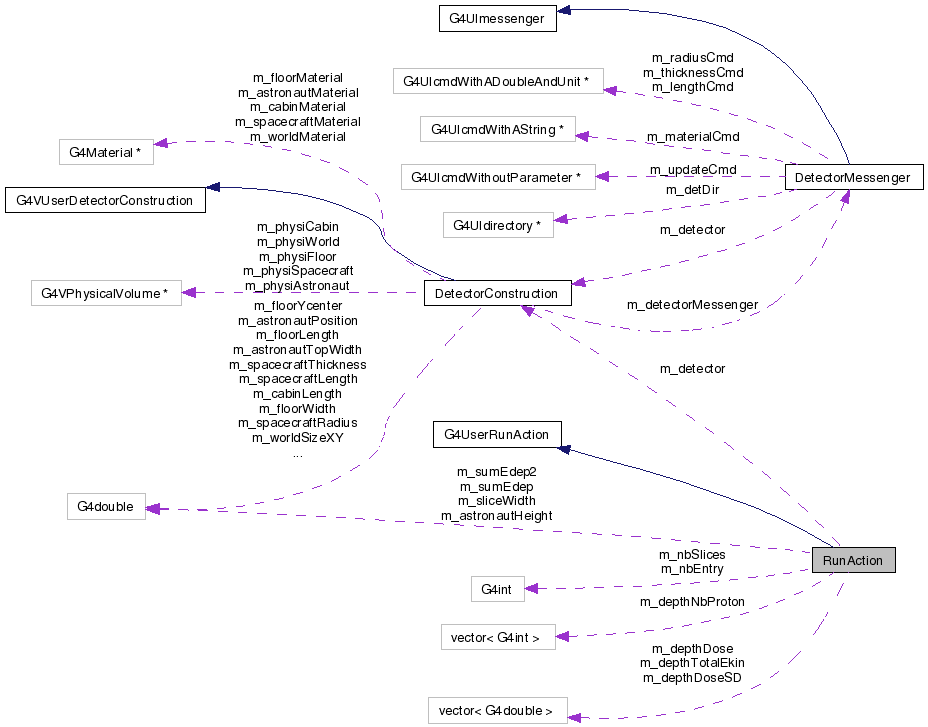

Collaboration diagram for RunAction:

Collaboration graph
[legend]

List of all members.

Public Member Functions

 RunAction (DetectorConstruction *)
 ~RunAction ()
void BeginOfRunAction (const G4Run *)
void EndOfRunAction (const G4Run *)
void SumEvents (G4double e)
void SumDepthDose (G4double, G4double)
void SumDepthDoseSD (G4double, G4double)
void SumDepthDoseSD (G4int, G4double, G4int, G4double)
G4int GetSliceNumber (G4double z) const
G4int GetNumberOfSlices () const
void WriteDepthDose (G4String)

Private Attributes

DetectorConstruction * m_detector
G4double m_sumEdep
G4double m_sumEdep2
G4int m_nbEntry
std::vector< G4double > m_depthDose
std::vector< G4double > m_depthDoseSD
std::vector< G4double > m_depthTotalEkin
std::vector< G4int > m_depthNbProton
G4double m_astronautHeight
G4double m_sliceWidth
G4int m_nbSlices

Detailed Description

Definition at line 19 of file RunAction.hh.

Constructor & Destructor Documentation

RunAction::RunAction ( DetectorConstruction *  det  )

Definition at line 17 of file RunAction.cc.

00018 :m_detector(det)
00019 { }

RunAction::~RunAction (  )

Definition at line 23 of file RunAction.cc.

00024 { }

Member Function Documentation

void RunAction::BeginOfRunAction ( const G4Run *  run  )

Definition at line 28 of file RunAction.cc.

00029 {
00030   G4cout << "### Run " << run->GetRunID() << " start." << G4endl;
00031
00032   //initialize total energy deposit
00033   //
00034   m_sumEdep = m_sumEdep2 = 0.;
00035   m_nbEntry = 0;
00036
00037   //construct vector of m_depthDose distribution
00038   //
00039   m_nbSlices = 100;
00040   m_astronautHeight = m_detector->GetAstronautHeight();
00041   m_sliceWidth = m_astronautHeight/m_nbSlices;
00042   m_depthDose.resize(m_nbSlices, 0.);
00043   m_depthDoseSD   .resize(m_nbSlices, 0.);
00044   m_depthTotalEkin.resize(m_nbSlices, 0.);
00045   m_depthNbProton .resize(m_nbSlices, 0 );
00046
00047 }

void RunAction::EndOfRunAction ( const G4Run *   )

Definition at line 118 of file RunAction.cc.

00119 {
00120   G4double meanEd = 0., meanEd2 = 0., rmsEd = 0., error_rel_sum = 0.;
00121   if (m_nbEntry) {
00122     meanEd = m_sumEdep/m_nbEntry; meanEd2 = m_sumEdep2/m_nbEntry;
00123     G4double variance = meanEd2 - meanEd*meanEd;
00124     if (variance > 0.) rmsEd = std::sqrt(variance);
00125     error_rel_sum = rmsEd/(meanEd*std::sqrt(double(m_nbEntry)));
00126   }
00127
00128   // choose printing format
00129   std::ios::fmtflags mode = G4cout.flags();
00130   G4cout.setf(std::ios::fixed,std::ios::floatfield);
00131   G4int prec = G4cout.precision(3);
00132
00133   //print total energy deposit
00134   //
00135   G4cout
00136     << "\n ---> Nb of non-empty events = " << m_nbEntry
00137     << "\n ---> Mean Edep per event    = " << G4BestUnit(meanEd,"Energy")
00138     << "\n ---> Total Energy deposited = " << G4BestUnit(m_sumEdep,"Energy")
00139     << " +- " << G4BestUnit(m_sumEdep*error_rel_sum,"Energy")
00140     << "  (-> " << 100*error_rel_sum << " %)"
00141     << G4endl;
00142
00143   //get mass of astronaut
00144   //
00145   G4double mass = m_detector->GetAstronaut()->GetLogicalVolume()->GetMass();
00146
00147   //compute dose
00148   //
00149   G4double dose = m_sumEdep/mass;
00150   G4cout.setf(mode,std::ios::floatfield);
00151   G4cout.precision(5);
00152   G4cout << " ---> Dose = " << G4BestUnit(dose,"Dose")
00153          << " +- " << G4BestUnit(dose*error_rel_sum,"Dose") << "\n"
00154          << G4endl;
00155
00156   // restaure default formats
00157   G4cout.setf(mode,std::ios::floatfield);
00158   G4cout.precision(prec);
00159
00160   // convert m_depthDose array from energy to dose
00161   //
00162   for (G4int k=0; k<m_nbSlices; k++)  m_depthDose[k] /= mass;
00163   //
00164   for (G4int k=0; k<m_nbSlices; k++)  m_depthDoseSD[k] /= mass;
00165
00166
00167
00168   // write m_depthDose array on a file
00169   //
00170   WriteDepthDose("depthDose");
00171
00172   // restaure default formats
00173   G4cout.setf(mode,std::ios::floatfield);
00174   G4cout.precision(prec);
00175 }

void RunAction::SumEvents ( G4double  e  )  [inline]

Definition at line 29 of file RunAction.hh.

Referenced by EventAction::EndOfEventAction().

00029 { m_sumEdep += e; m_sumEdep2 += e*e; m_nbEntry++; };

void RunAction::SumDepthDose ( G4double  zLocal,
G4double  edep
)

Definition at line 51 of file RunAction.cc.

Referenced by SteppingAction::UserSteppingAction().

00052 {
00053   // check coherence
00054   if (zLocal > m_astronautHeight) {
00055     G4cout << "\n --> warning from RunAction::SumDepthDose() : "
00056            << " zLocal beyond astronaut height : " << zLocal/mm << G4endl;
00057     return;
00058   }
00059
00060   // compute slice number
00061   G4int k = int(zLocal/m_sliceWidth);
00062
00063   // sum edep
00064   m_depthDose[k] += edep;
00065 }

void RunAction::SumDepthDoseSD ( G4double  zLocal,
G4double  edep
)

Definition at line 68 of file RunAction.cc.

Referenced by EventAction::EndOfEventAction().

00069 {
00070   // check coherence
00071   if (zLocal > m_astronautHeight) {
00072     G4cout << "\n --> warning from RunAction::SumDepthDose() : "
00073            << " zLocal beyond astronaut height : " << zLocal/mm << G4endl;
00074     return;
00075   }
00076
00077   // compute slice number
00078   G4int k = int(zLocal/m_sliceWidth);
00079
00080   // sum edep
00081   m_depthDoseSD[k] += edep;
00082 }

void RunAction::SumDepthDoseSD ( G4int  k,
G4double  edep,
G4int  nbProton,
G4double  totalEkin
)

Definition at line 85 of file RunAction.cc.

00086 {
00087   // check coherence
00088   if (k >= m_nbSlices) {
00089     G4cout << "\n --> warning from RunAction::SumDepthDoseSD() : "
00090            << " k beyond nb slices : " << k << G4endl;
00091     return;
00092   }
00093
00094   // sum edep, number of proton, and total proton eKin:
00095   m_depthDoseSD[k]    += edep;
00096   m_depthNbProton[k]  += nbProton;
00097   m_depthTotalEkin[k] += totalEkin;
00098 }

G4int RunAction::GetSliceNumber ( G4double  z  )  const

Definition at line 101 of file RunAction.cc.

Referenced by SensitiveDetector::ProcessHits().

00102 {
00103   // compute slice number
00104   G4int k = int(zLocal/m_sliceWidth);
00105
00106   // check coherence
00107   if (k >= m_nbSlices) {
00108     G4cout << "\n --> warning from RunAction::GetSliceNumber() : "
00109            << " k beyond nb slices : " << k << " returning -1" << G4endl;
00110     k = -1;
00111   }
00112
00113   return k;
00114 }

G4int RunAction::GetNumberOfSlices (  )  const [inline]

Definition at line 39 of file RunAction.hh.

Referenced by SensitiveDetector::Initialize().

00039 {return m_nbSlices;}

void RunAction::WriteDepthDose ( G4String  name  )

Definition at line 181 of file RunAction.cc.

Referenced by EndOfRunAction().

00182 {
00183   G4String fileName = name + ".ascii";
00184   std::ofstream File(fileName, std::ios::out);
00185
00186   G4String fileNameSD = name + "SD"+ ".ascii";
00187   std::ofstream FileSD(fileNameSD, std::ios::out);
00188
00189   std::ios::fmtflags mode = File.flags();
00190   File.setf( std::ios::scientific, std::ios::floatfield );
00191   G4int prec = File.precision(4);
00192
00193   std::ios::fmtflags modeSD = FileSD.flags();
00194   FileSD.setf( std::ios::scientific, std::ios::floatfield );
00195   G4int precSD = FileSD.precision(4);
00196
00197   File   << "  Longitudinal depth dose distribution \n "
00198          << "\n  zLocal (mm)\t  m_depthDose(gray) \n" << G4endl;
00199
00200   FileSD << "  Longitudinal depth dose distribution \n "
00201          << "\n  zLocal (mm)\t  Dose(gray) \t #proton \t <eKin> (MeV) \n" << G4endl;
00202
00203   G4double zLocal;
00204   for (G4int k=0; k<m_nbSlices; k++) {
00205      zLocal = (k+0.5)*m_sliceWidth;
00206      File << "  "   << zLocal/mm
00207           << "\t  " << m_depthDose[k]/gray << G4endl;
00208   }
00209
00210   // -- write data from SD :
00211   for (G4int k=0; k<m_nbSlices; k++) {
00212       zLocal = (k+0.5)*m_sliceWidth;
00213       G4double meanEkin(-1.*MeV);
00214       if (m_depthNbProton[k]>0) meanEkin = m_depthTotalEkin[k]/m_depthNbProton[k];
00215       FileSD << "  "   << zLocal/mm
00216              << "\t  " << m_depthDoseSD[k]/gray
00217              << "\t  " << m_depthNbProton[k]
00218              << "\t  " << meanEkin / MeV
00219              << G4endl;
00220   }
00221
00222   // restaure default formats
00223   File.setf(mode,std::ios::floatfield);
00224   File.precision(prec);
00225
00226   FileSD.setf(modeSD,std::ios::floatfield);
00227   FileSD.precision(precSD);
00228
00229 }

Member Data Documentation

DetectorConstruction* RunAction::m_detector [private]

Definition at line 44 of file RunAction.hh.

Referenced by BeginOfRunAction(), and EndOfRunAction().

G4double RunAction::m_sumEdep [private]

Definition at line 46 of file RunAction.hh.

Referenced by BeginOfRunAction(), EndOfRunAction(), and SumEvents().

G4double RunAction::m_sumEdep2 [private]

Definition at line 46 of file RunAction.hh.

Referenced by BeginOfRunAction(), EndOfRunAction(), and SumEvents().

G4int RunAction::m_nbEntry [private]

Definition at line 47 of file RunAction.hh.

Referenced by BeginOfRunAction(), EndOfRunAction(), and SumEvents().

std::vector<G4double> RunAction::m_depthDose [private]

Definition at line 49 of file RunAction.hh.

Referenced by BeginOfRunAction(), EndOfRunAction(), SumDepthDose(), and WriteDepthDose().

std::vector<G4double> RunAction::m_depthDoseSD [private]

Definition at line 50 of file RunAction.hh.

Referenced by BeginOfRunAction(), EndOfRunAction(), SumDepthDoseSD(), and WriteDepthDose().

std::vector<G4double> RunAction::m_depthTotalEkin [private]

Definition at line 50 of file RunAction.hh.

Referenced by BeginOfRunAction(), SumDepthDoseSD(), and WriteDepthDose().

std::vector<G4int> RunAction::m_depthNbProton [private]

Definition at line 51 of file RunAction.hh.

Referenced by BeginOfRunAction(), SumDepthDoseSD(), and WriteDepthDose().

G4double RunAction::m_astronautHeight [private]

Definition at line 52 of file RunAction.hh.

Referenced by BeginOfRunAction(), SumDepthDose(), and SumDepthDoseSD().

G4double RunAction::m_sliceWidth [private]

Definition at line 53 of file RunAction.hh.

Referenced by BeginOfRunAction(), GetSliceNumber(), SumDepthDose(), SumDepthDoseSD(), and WriteDepthDose().

G4int RunAction::m_nbSlices [private]

Definition at line 54 of file RunAction.hh.

Referenced by BeginOfRunAction(), EndOfRunAction(), GetNumberOfSlices(), GetSliceNumber(), SumDepthDoseSD(), and WriteDepthDose().

The documentation for this class was generated from the following files:
Generated on Fri Nov 21 10:21:12 2008 for jour4b3 by  doxygen 1.5.7.1
