RunAction Class Reference

#include <RunAction.hh>

Inheritance diagram for RunAction:

Inheritance graph
[legend]

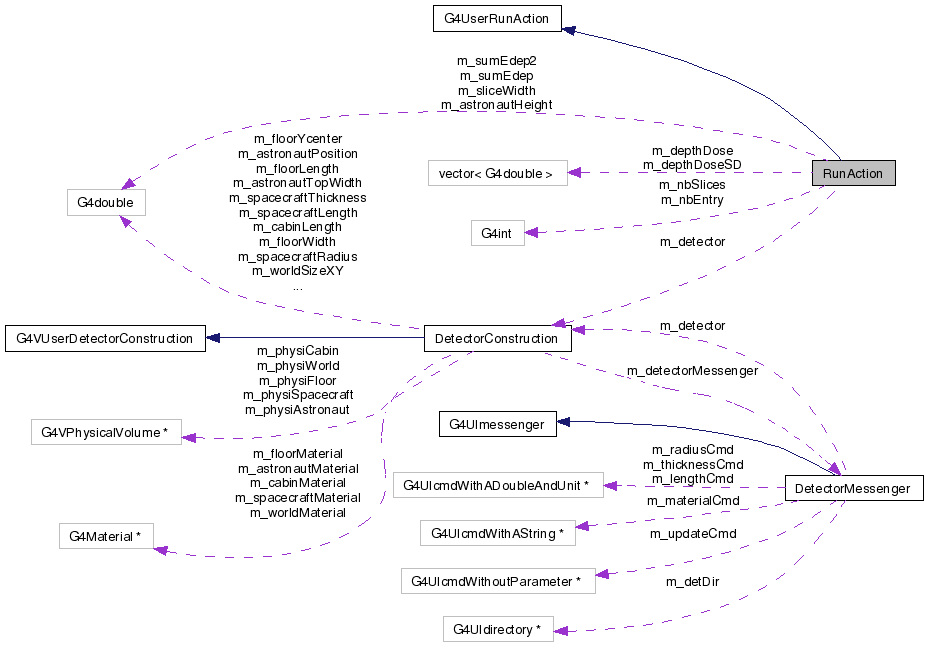

Collaboration diagram for RunAction:

Collaboration graph
[legend]

List of all members.

Public Member Functions

 RunAction (DetectorConstruction *)
 ~RunAction ()
void BeginOfRunAction (const G4Run *)
void EndOfRunAction (const G4Run *)
void SumEvents (G4double e)
void SumDepthDose (G4double, G4double)
void SumDepthDoseSD (G4double, G4double)
void SumDepthDoseSD (G4int, G4double)
G4int GetSliceNumber (G4double z) const
G4int GetNumberOfSlices () const
void WriteDepthDose (G4String)

Private Attributes

DetectorConstruction * m_detector
G4double m_sumEdep
G4double m_sumEdep2
G4int m_nbEntry
std::vector< G4double > m_depthDose
std::vector< G4double > m_depthDoseSD
G4double m_astronautHeight
G4double m_sliceWidth
G4int m_nbSlices

Detailed Description

Definition at line 19 of file RunAction.hh.

Constructor & Destructor Documentation

RunAction::RunAction ( DetectorConstruction *  det  )

Definition at line 17 of file RunAction.cc.

00018 :m_detector(det)
00019 { }

RunAction::~RunAction (  )

Definition at line 23 of file RunAction.cc.

00024 { }

Member Function Documentation

void RunAction::BeginOfRunAction ( const G4Run *  run  )

Definition at line 28 of file RunAction.cc.

00029 {
00030   G4cout << "### Run " << run->GetRunID() << " start." << G4endl;
00031
00032   //initialize total energy deposit
00033   //
00034   m_sumEdep = m_sumEdep2 = 0.;
00035   m_nbEntry = 0;
00036
00037   //construct vector of m_depthDose distribution
00038   //
00039   m_nbSlices = 100;
00040   m_astronautHeight = m_detector->GetAstronautHeight();
00041   m_sliceWidth = m_astronautHeight/m_nbSlices;
00042   m_depthDose.resize(m_nbSlices, 0.);
00043   m_depthDoseSD.resize(m_nbSlices, 0.);
00044
00045 }

void RunAction::EndOfRunAction ( const G4Run *   )

Definition at line 114 of file RunAction.cc.

00115 {
00116   G4double meanEd = 0., meanEd2 = 0., rmsEd = 0., error_rel_sum = 0.;
00117   if (m_nbEntry) {
00118     meanEd = m_sumEdep/m_nbEntry; meanEd2 = m_sumEdep2/m_nbEntry;
00119     G4double variance = meanEd2 - meanEd*meanEd;
00120     if (variance > 0.) rmsEd = std::sqrt(variance);
00121     error_rel_sum = rmsEd/(meanEd*std::sqrt(double(m_nbEntry)));
00122   }
00123
00124   // choose printing format
00125   std::ios::fmtflags mode = G4cout.flags();
00126   G4cout.setf(std::ios::fixed,std::ios::floatfield);
00127   G4int prec = G4cout.precision(3);
00128
00129   //print total energy deposit
00130   //
00131   G4cout
00132     << "\n ---> Nb of non-empty events = " << m_nbEntry
00133     << "\n ---> Mean Edep per event    = " << G4BestUnit(meanEd,"Energy")
00134     << "\n ---> Total Energy deposited = " << G4BestUnit(m_sumEdep,"Energy")
00135     << " +- " << G4BestUnit(m_sumEdep*error_rel_sum,"Energy")
00136     << "  (-> " << 100*error_rel_sum << " %)"
00137     << G4endl;
00138
00139   //get mass of astronaut
00140   //
00141   G4double mass = m_detector->GetAstronaut()->GetLogicalVolume()->GetMass();
00142
00143   //compute dose
00144   //
00145   G4double dose = m_sumEdep/mass;
00146   G4cout.setf(mode,std::ios::floatfield);
00147   G4cout.precision(5);
00148   G4cout << " ---> Dose = " << G4BestUnit(dose,"Dose")
00149          << " +- " << G4BestUnit(dose*error_rel_sum,"Dose") << "\n"
00150          << G4endl;
00151
00152   // restaure default formats
00153   G4cout.setf(mode,std::ios::floatfield);
00154   G4cout.precision(prec);
00155
00156   // convert m_depthDose array from energy to dose
00157   //
00158   for (G4int k=0; k<m_nbSlices; k++)  m_depthDose[k] /= mass;
00159   //
00160   for (G4int k=0; k<m_nbSlices; k++)  m_depthDoseSD[k] /= mass;
00161
00162
00163
00164   // write m_depthDose array on a file
00165   //
00166   WriteDepthDose("depthDose");
00167
00168   // restaure default formats
00169   G4cout.setf(mode,std::ios::floatfield);
00170   G4cout.precision(prec);
00171 }

void RunAction::SumEvents ( G4double  e  )  [inline]

Definition at line 29 of file RunAction.hh.

Referenced by EventAction::EndOfEventAction().

00029 { m_sumEdep += e; m_sumEdep2 += e*e; m_nbEntry++; };

void RunAction::SumDepthDose ( G4double  zLocal,
G4double  edep
)

Definition at line 49 of file RunAction.cc.

Referenced by SteppingAction::UserSteppingAction().

00050 {
00051   // check coherence
00052   if (zLocal > m_astronautHeight) {
00053     G4cout << "\n --> warning from RunAction::SumDepthDose() : "
00054            << " zLocal beyond astronaut height : " << zLocal/mm << G4endl;
00055     return;
00056   }
00057
00058   // compute slice number
00059   G4int k = int(zLocal/m_sliceWidth);
00060
00061   // sum edep
00062   m_depthDose[k] += edep;
00063 }

void RunAction::SumDepthDoseSD ( G4double  zLocal,
G4double  edep
)

Definition at line 66 of file RunAction.cc.

Referenced by EventAction::EndOfEventAction().

00067 {
00068   // check coherence
00069   if (zLocal > m_astronautHeight) {
00070     G4cout << "\n --> warning from RunAction::SumDepthDose() : "
00071            << " zLocal beyond astronaut height : " << zLocal/mm << G4endl;
00072     return;
00073   }
00074
00075   // compute slice number
00076   G4int k = int(zLocal/m_sliceWidth);
00077
00078   // sum edep
00079   m_depthDoseSD[k] += edep;
00080 }

void RunAction::SumDepthDoseSD ( G4int  k,
G4double  edep
)

Definition at line 83 of file RunAction.cc.

00084 {
00085   // check coherence
00086   if (k >= m_nbSlices) {
00087     G4cout << "\n --> warning from RunAction::SumDepthDoseSD() : "
00088            << " k beyond nb slices : " << k << G4endl;
00089     return;
00090   }
00091
00092   // sum edep
00093   m_depthDoseSD[k] += edep;
00094 }

G4int RunAction::GetSliceNumber ( G4double  z  )  const

Definition at line 97 of file RunAction.cc.

Referenced by SensitiveDetector::ProcessHits().

00098 {
00099   // compute slice number
00100   G4int k = int(zLocal/m_sliceWidth);
00101
00102   // check coherence
00103   if (k >= m_nbSlices) {
00104     G4cout << "\n --> warning from RunAction::GetSliceNumber() : "
00105            << " k beyond nb slices : " << k << " returning -1" << G4endl;
00106     k = -1;
00107   }
00108
00109   return k;
00110 }

G4int RunAction::GetNumberOfSlices (  )  const [inline]

Definition at line 39 of file RunAction.hh.

Referenced by SensitiveDetector::Initialize().

00039 {return m_nbSlices;}

void RunAction::WriteDepthDose ( G4String  name  )

Definition at line 177 of file RunAction.cc.

Referenced by EndOfRunAction().

00178 {
00179   G4String fileName = name + ".ascii";
00180   std::ofstream File(fileName, std::ios::out);
00181
00182   G4String fileNameSD = name + "SD"+ ".ascii";
00183   std::ofstream FileSD(fileNameSD, std::ios::out);
00184
00185   std::ios::fmtflags mode = File.flags();
00186   File.setf( std::ios::scientific, std::ios::floatfield );
00187   G4int prec = File.precision(4);
00188
00189   std::ios::fmtflags modeSD = FileSD.flags();
00190   FileSD.setf( std::ios::scientific, std::ios::floatfield );
00191   G4int precSD = FileSD.precision(4);
00192
00193   File   << "  Longitudinal depth dose distribution \n "
00194          << "\n  zLocal (mm)\t  m_depthDose(gray) \n" << G4endl;
00195
00196   FileSD << "  Longitudinal depth dose distribution \n "
00197          << "\n  zLocal (mm)\t  m_depthDose(gray) \n" << G4endl;
00198
00199   G4double zLocal;
00200   for (G4int k=0; k<m_nbSlices; k++) {
00201      zLocal = (k+0.5)*m_sliceWidth;
00202      File << "  "   << zLocal/mm
00203           << "\t  " << m_depthDose[k]/gray << G4endl;
00204   }
00205
00206   // -- write date from SD :
00207   for (G4int k=0; k<m_nbSlices; k++) {
00208       zLocal = (k+0.5)*m_sliceWidth;
00209       FileSD << "  "   << zLocal/mm
00210              << "\t  " << m_depthDoseSD[k]/gray << G4endl;
00211   }
00212
00213   // restaure default formats
00214   File.setf(mode,std::ios::floatfield);
00215   File.precision(prec);
00216
00217   FileSD.setf(modeSD,std::ios::floatfield);
00218   FileSD.precision(precSD);
00219
00220 }

Member Data Documentation

DetectorConstruction* RunAction::m_detector [private]

Definition at line 44 of file RunAction.hh.

Referenced by BeginOfRunAction(), and EndOfRunAction().

G4double RunAction::m_sumEdep [private]

Definition at line 46 of file RunAction.hh.

Referenced by BeginOfRunAction(), EndOfRunAction(), and SumEvents().

G4double RunAction::m_sumEdep2 [private]

Definition at line 46 of file RunAction.hh.

Referenced by BeginOfRunAction(), EndOfRunAction(), and SumEvents().

G4int RunAction::m_nbEntry [private]

Definition at line 47 of file RunAction.hh.

Referenced by BeginOfRunAction(), EndOfRunAction(), and SumEvents().

std::vector<G4double> RunAction::m_depthDose [private]

Definition at line 49 of file RunAction.hh.

Referenced by BeginOfRunAction(), EndOfRunAction(), SumDepthDose(), and WriteDepthDose().

std::vector<G4double> RunAction::m_depthDoseSD [private]

Definition at line 50 of file RunAction.hh.

Referenced by BeginOfRunAction(), EndOfRunAction(), SumDepthDoseSD(), and WriteDepthDose().

G4double RunAction::m_astronautHeight [private]

Definition at line 51 of file RunAction.hh.

Referenced by BeginOfRunAction(), SumDepthDose(), and SumDepthDoseSD().

G4double RunAction::m_sliceWidth [private]

Definition at line 52 of file RunAction.hh.

Referenced by BeginOfRunAction(), GetSliceNumber(), SumDepthDose(), SumDepthDoseSD(), and WriteDepthDose().

G4int RunAction::m_nbSlices [private]

Definition at line 53 of file RunAction.hh.

Referenced by BeginOfRunAction(), EndOfRunAction(), GetNumberOfSlices(), GetSliceNumber(), SumDepthDoseSD(), and WriteDepthDose().

The documentation for this class was generated from the following files:
