RGHistoLimits Class Reference

#include <RGHistoLimits.hh>

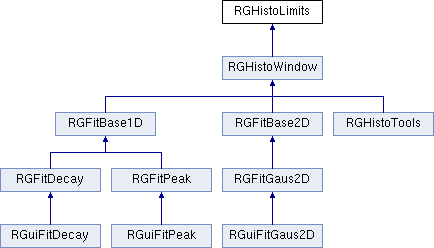

Inheritance diagram for RGHistoLimits:

Public Member Functions
	RGHistoLimits (TH1 *hptr=NULL)
	RGHistoLimits (const RGHistoLimits &original)
RGHistoLimits &	operator= (const RGHistoLimits &original)
virtual void	Affect (const RGHistoLimits &original)
virtual	~RGHistoLimits ()
virtual void	Reset ()
virtual Int_t	SetHisto (TH1 *hptr=NULL, const bool reset=true)
virtual bool	IsDataSet () const
virtual bool	SetXLog (const Bool_t b=kTRUE)
virtual bool	SetYLog (const Bool_t b=kTRUE)
virtual bool	SetZLog (const Bool_t b=kTRUE)
virtual void	SetXFull ()
virtual void	SetYFull ()
virtual void	SetZFull ()
virtual void	Unzoom ()
	ClassDef (RGHistoLimits, 0)

Protected Member Functions
virtual void	Set1DHisto (const TH1 *hptr)
virtual void	Set2DHisto (const TH1 *hptr)
virtual void	Set3DHisto (const TH1 *hptr)

Protected Attributes
Int_t	dimension
	Histogram dimension.
Double_t	lim_x_min
	Axis lower limit.
Double_t	lim_x_max
	Axis upper limit.
Double_t	lim_y_min
	Axis lower limit.
Double_t	lim_y_max
	Axis upper limit.
Double_t	lim_z_min
	Axis lower limit.
Double_t	lim_z_max
	Axis upper limit.
Double_t	log_x_min
	Lower limit for log scale.
Double_t	log_y_min
	Lower limit for log scale.
Double_t	log_z_min
	Lower limit for log scale.
bool	allow_x_log
	Test if log scale allowed.
bool	allow_y_log
	Test if log scale allowed.
bool	allow_z_log
	Test if log scale allowed.
Double_t	x_min
	Current display lower bound.
Double_t	x_max
	Current display upper bound.
Double_t	y_min
	Current display lower bound.
Double_t	y_max
	Current display upper bound.
Double_t	z_min
	Current display lower bound.
Double_t	z_max
	Current display upper bound.
bool	x_log
	Log scale status.
bool	y_log
	Log scale status.
bool	z_log
	Log scale status.

Private Member Functions
	GObject (RGHistoLimits)

Detailed Description

class RGHistoLimits

This class defines axis information for histogram display.

Constructor & Destructor Documentation

RGHistoLimits::RGHistoLimits

(

TH1 *

hptr = NULL

)

Constructor.

Parameters

hptr	histogram pointer

References Reset(), and SetHisto().

RGHistoLimits::RGHistoLimits

(

const RGHistoLimits &

original

)

Copy constructor.

Parameters

original

object to copy

References Affect().

RGHistoLimits::~RGHistoLimits ( )

virtual

Destructor.

Member Function Documentation

RGHistoLimits::GObject ( RGHistoLimits  )

private

Macro from GCpp library that defines the following functions:

• ClassName(): return the real class name of the object
• StaticClassName(): return the used class name of the object (that may be a base class of the real object).
• IsInstanceOf<T>(): return true if the current object is an instance of the template class name argument
• Clone(): return an allocated copy of the object.

RGHistoLimits & RGHistoLimits::operator=

(

const RGHistoLimits &

original

)

Affectation operator.

Parameters

original

instance to copy

References Affect().

void RGHistoLimits::Affect ( const RGHistoLimits &  original )

virtual

Affectation function of an instance.

Parameters

original

instance to copy

References allow_x_log, allow_y_log, allow_z_log, dimension, lim_x_max, lim_x_min, lim_y_max, lim_y_min, lim_z_max, lim_z_min, log_x_min, log_y_min, log_z_min, x_log, x_max, x_min, y_log, y_max, y_min, z_log, z_max, and z_min.

Referenced by operator=(), and RGHistoLimits().

void RGHistoLimits::Reset ( )

virtual

Reset all data.

Reimplemented in RGHistoWindow.

References allow_x_log, allow_y_log, allow_z_log, dimension, lim_x_max, lim_x_min, lim_y_max, lim_y_min, lim_z_max, lim_z_min, log_x_min, log_y_min, log_z_min, x_log, x_max, x_min, y_log, y_max, y_min, z_log, z_max, and z_min.

Referenced by RGHistoWindow::Reset(), RGHistoLimits(), and SetHisto().

Int_t RGHistoLimits::SetHisto ( TH1 *  hptr = NULL, const bool  reset = true  )

virtual

Update information from histogram pointer. The function returns 0 if no error occured (null pointer or bad dimension). In case of problem, all class data are initialized if argument reset is true.

Parameters

hptr	histogram pointer to set display limits
reset	initialize in case of problem

Reimplemented in RGHistoWindow.

References lim_x_max, lim_x_min, lim_y_max, lim_y_min, lim_z_max, lim_z_min, log_x_min, log_y_min, log_z_min, Reset(), Set1DHisto(), Set2DHisto(), and Set3DHisto().

Referenced by RGHistoLimits(), and RGHistoWindow::SetHisto().

bool RGHistoLimits::IsDataSet ( ) const

inlinevirtual

Return true if data are defined.

References dimension.

Referenced by SetXFull(), SetXLog(), SetYFull(), SetYLog(), SetZFull(), and SetZLog().

void RGHistoLimits::Set1DHisto ( const TH1 *  hptr )

protectedvirtual

Update data from a 1D histogram (called by SetHisto function).

Parameters

hptr	histogram pointer to set display limits

References allow_x_log, allow_y_log, allow_z_log, dimension, lim_x_max, lim_x_min, lim_y_max, lim_y_min, lim_z_max, lim_z_min, log_x_min, log_y_min, log_z_min, x_max, x_min, y_max, and y_min.

Referenced by SetHisto().

void RGHistoLimits::Set2DHisto ( const TH1 *  hptr )

protectedvirtual

Update data from a 2D histogram (called by SetHisto function).

Parameters

hptr	histogram pointer to set display limits

References allow_x_log, allow_y_log, allow_z_log, dimension, lim_x_max, lim_x_min, lim_y_max, lim_y_min, lim_z_max, lim_z_min, log_x_min, log_y_min, log_z_min, x_max, x_min, y_max, y_min, z_max, and z_min.

Referenced by SetHisto().

void RGHistoLimits::Set3DHisto ( const TH1 *  hptr )

protectedvirtual

Update data from a 3D histogram (called by SetHisto function).

Parameters

hptr	histogram pointer to set display limits

References allow_x_log, allow_y_log, allow_z_log, dimension, lim_x_max, lim_x_min, lim_y_max, lim_y_min, lim_z_max, lim_z_min, log_x_min, log_y_min, log_z_min, x_max, x_min, y_max, y_min, z_max, and z_min.

Referenced by SetHisto().

bool RGHistoLimits::SetXLog ( const Bool_t  b = kTRUE )

virtual

Set log-scale mode for the axis. The function returns true if a change has been done.

Parameters

b	log scale status

Reimplemented in RGHistoWindow.

References allow_x_log, IsDataSet(), lim_x_max, lim_x_min, log_x_min, x_log, x_max, and x_min.

bool RGHistoLimits::SetYLog ( const Bool_t  b = kTRUE )

virtual

Set log-scale mode for the axis. The function returns true if a change has been done.

Parameters

b	log scale status

Reimplemented in RGHistoWindow.

References allow_y_log, IsDataSet(), lim_y_max, lim_y_min, log_y_min, y_log, y_max, and y_min.

bool RGHistoLimits::SetZLog ( const Bool_t  b = kTRUE )

virtual

Set log-scale mode for the axis. The function returns true if a change has been done.

Parameters

b	log scale status

Reimplemented in RGHistoWindow.

References allow_z_log, IsDataSet(), lim_z_max, lim_z_min, log_z_min, z_log, z_max, and z_min.

void RGHistoLimits::SetXFull ( )

virtual

Set X axis full scale.

Reimplemented in RGHistoWindow.

References IsDataSet(), lim_x_max, lim_x_min, log_x_min, x_log, x_max, and x_min.

Referenced by Unzoom().

void RGHistoLimits::SetYFull ( )

virtual

Set Y axis full scale.

Reimplemented in RGHistoWindow.

References dimension, IsDataSet(), lim_y_max, lim_y_min, log_y_min, y_log, y_max, and y_min.

Referenced by Unzoom().

void RGHistoLimits::SetZFull ( )

virtual

Set Z axis full scale.

Reimplemented in RGHistoWindow.

References IsDataSet(), z_max, and z_min.

Referenced by Unzoom().

void RGHistoLimits::Unzoom ( )

inlinevirtual

Set all axis limits to maximum values.

References SetXFull(), SetYFull(), and SetZFull().

RGHistoLimits::ClassDef	(	RGHistoLimits	,
		0
	)

For ROOT dictionary.

---

The documentation for this class was generated from the following files:

• RGHistoLimits.hh
• RGHistoLimits.icc
• RGHistoLimits.cpp
