Spec1Dim Class Reference

#include <Spec1Dim.hh>

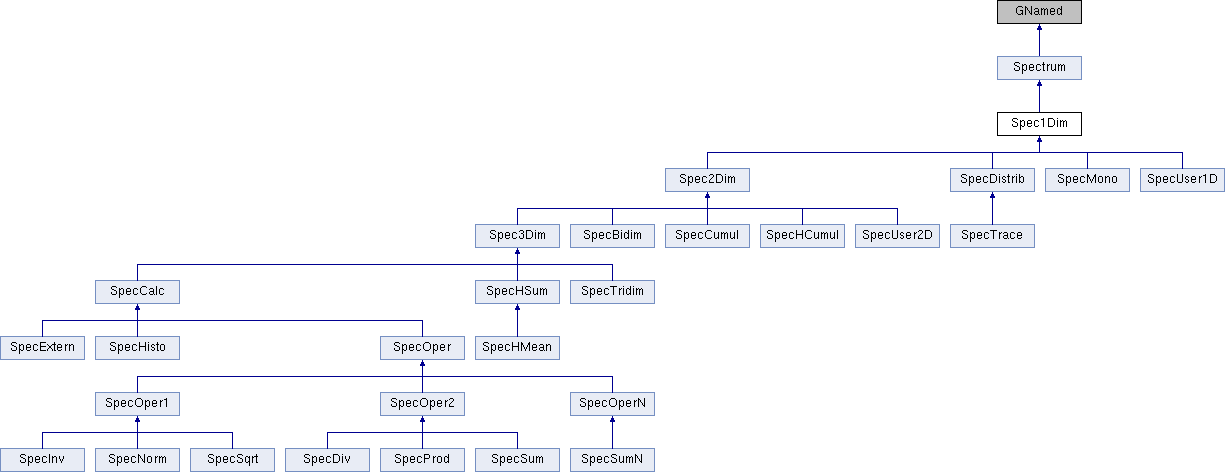

Inheritance diagram for Spec1Dim:

Public Member Functions
	Spec1Dim (const string &spec_name, const u_int nx, const double x1, const double x2)
	Spec1Dim (const Spec1Dim &original)
virtual	~Spec1Dim ()
virtual u_int	Dimension () const
virtual u_int	Xdim () const
virtual double	Xmin () const
virtual double	Xmax () const
virtual int	BinX (const Data &d) const
	ClassDef (Spec1Dim, 0)
Public Member Functions inherited from Spectrum
	Spectrum (const string &spec_name)
	Spectrum (const Spectrum &original)
virtual	~Spectrum ()
string	GetTitleX () const
string	GetTitleY () const
string	GetTitleZ () const
string	GetFamilyName () const
string	GetFilterName () const
TH1 *	GetHistoPtr () const
virtual bool	Write (ostream &os)
virtual bool	Write (FILE *fptr)
virtual string	DefinitionString () const =0
virtual string	BaseDefinitionString () const
virtual void	Start ()
virtual void	Stop ()
virtual void	Suspend ()
virtual bool	IsStarted () const
virtual bool	IsStopped () const
virtual bool	IsSuspended () const
virtual bool	IsIncremented () const
virtual bool	IsUpdated () const
virtual void	SetSelectionBit (const bool b=true)
virtual void	SetSaveSelectionBit (const bool b=true)
virtual void	SetDeleteSelectionBit (const bool b=true)
virtual bool	GetSelectionBit () const
virtual bool	GetSaveSelectionBit () const
virtual bool	GetDeleteSelectionBit () const
virtual void	SetSaveProtection (const bool b=true)
virtual void	SetDeleteProtection (const bool b=true)
virtual bool	GetSaveProtection () const
virtual bool	GetDeleteProtection () const
bool	FilterCheck () const
virtual string	StatusString () const
virtual void	Reset ()
virtual void	ClearEvent ()
virtual void	Increment ()
virtual void	Update ()
virtual SpectrumFamily *	GetFamilyPtr ()
virtual const SpectrumFamily *	GetFamilyPtr () const
virtual bool	SetFamily (SpectrumFamily *family)
virtual void	ResetFamily ()
virtual const Filter *	GetFilterPtr ()
virtual void	SetFilter (const Filter *f)
virtual bool	SetFilters (const string &filt_names, const EventManager *evt_mgr)
virtual void	ResetFilter ()
virtual bool	UsesContour (const RContour *ct, const bool rec=true) const
virtual bool	UsesFilter (const Filter *f, const bool rec=true) const
virtual bool	UsesSpectrum (const Spectrum *sp, const bool rec=true) const
virtual int	Compare (const Spectrum &spec) const
virtual u_int	TypeId () const =0
virtual string	Type () const =0
virtual const Param *	GetXParamPtr () const
virtual const Param *	GetYParamPtr () const
virtual const Param *	GetZParamPtr () const
virtual Int_t	GetParamNumber () const
virtual string	Definition () const =0
virtual string	FilterInfo () const
virtual void	Rename (const string &name, const string &name_x="", const string &name_y="", const string &name_z="")
	ClassDef (Spectrum, 0)

Protected Member Functions
string	AxisDefinition (const Param &p, const u_int dim, const double min, const double max) const
string	AxisDefinition (const string &label, const u_int dim, const double min, const double max) const
Protected Member Functions inherited from Spectrum
virtual void	IncrementFast ()
bool	FilterFastCheck () const
bool	FilterFastLocalCheck () const
virtual void	IncrementSpectrum ()

Protected Attributes
u_int	x_dim
	Nombre de canaux de la dimension X.
double	x_min
	Valeur minimum de la dimension X.
double	x_max
	Valeur maximum de la dimension X.
double	x_bin
	largeur d'un bin sur l'axe X
Protected Attributes inherited from Spectrum
u_int	status
	Mot d'état du spectre.
TH1 *	histo_ptr
	Pointeur sur l'histogramme Root.
SpectrumFamily **	family_ptr
const Filter **	filter_ptr
	Pointeur sur filtre associé
bool *	filter_local
	Indique si le filtre est créé localement comme un "ET" d'un ensemble de filtres.

Private Member Functions
	GObjectV (Spec1Dim)

Additional Inherited Members
Static Public Member Functions inherited from Spectrum
static string	ValidName (const string s_name)
static Spectrum *	ReadSpectrum (FILE *fptr, const EventManager *evt_mgr, string &fam, string &filt, int &error)
static Spectrum *	NewSpectrum (const string &str, const EventManager *evt_mgr, string &fam, string &filt)
static Spectrum *	NewSpectrum (const string &str, const EventManager *evt_mgr, string &fam, string &filt, int &error)
static bool	Compare (const Spectrum *spec1, const Spectrum *spec2, const UInt_t flags)
static Int_t	Compare (const Spectrum *spec1, const Spectrum *spec2)
static bool	Compare (const int sp_num, const Spectrum **sp_tab, const UInt_t flags)
Static Protected Attributes inherited from Spectrum
static u_int	name_len = 0
	Longueur d'affichage des noms de spectres.
static u_int	type_len = 0
	Longueur d'affichage des types de spectres.
static u_int	param_name_len = 0
	Longueur d'affichage des noms de paramètres.
static u_int	dim_len = 0
	Longueur d'affichage des dimensions.
static u_int	bound_len = 0
	Longueur d'affichage des limites de spectre.
static u_int	bound_prec = 5
	Précision d'affichage des limites de spectre.

Detailed Description

Classe de base pour les spectres à 1 dimension.

Constructor & Destructor Documentation

Spec1Dim::Spec1Dim	(	const string &	spec_name,
		const u_int	nx,
		const double	x1,
		const double	x2
	)

Constructeur

Parameters

spec_name	chaîne donnant le nom du spectre
nx	nombre de canaux de la dimension X
x1	Valeur minimum de la dimension X
x2	Valeur maximum de la dimension X

References x_bin, x_dim, x_max, and x_min.

Spec1Dim::Spec1Dim

(

const Spec1Dim &

original

)

Constructeur de recopie.

Parameters

original

instance à recopier

References x_bin, x_dim, x_max, and x_min.

Spec1Dim::~Spec1Dim ( )

virtual

Destructeur.

Member Function Documentation

Spec1Dim::GObjectV ( Spec1Dim  )

private

Macro from GCpp library that defines the following functions:

• ClassName(): return the real class name of the object
• StaticClassName(): return the used class name of the object (that may be a base class of the real object).
• IsInstanceOf<T>(): return true if the current object is an instance of the template class name argument
• Clone(): return an allocated copy of the object.

u_int Spec1Dim::Dimension ( ) const

inlinevirtual

Méthode qui retourne la dimension d'un spectre.

Implements Spectrum.

Reimplemented in SpecCalc, SpecHSum, Spec3Dim, and Spec2Dim.

Referenced by SpecMono::Definition(), SpecDistrib::Definition(), and SpecUser1D::Definition().

u_int Spec1Dim::Xdim ( ) const

inlinevirtual

/ Retourne le nombre de canaux de la dimension X.

References x_dim.

Referenced by Spectrum::Compare(), GEVSpectrumEditor::Copy(), SpecMono::DefinitionString(), SpecUser1D::DefinitionString(), SpecBidim::DefinitionString(), SpecUser2D::DefinitionString(), SpecTridim::DefinitionString(), SpecUser1D::Increment(), SpecUser2D::Increment(), SpectrumList::SetDimLen(), SpecOper::SetHisto(), SpecOper2::SetHistoXY(), SpecUser1D::SetValue(), SpecUser2D::SetValue(), SpecUser1D::XAxisDefinition(), SpecUser2D::XAxisDefinition(), SpecMono::XAxisDefinition(), SpecBidim::XAxisDefinition(), SpecDistrib::XAxisDefinition(), SpecTridim::XAxisDefinition(), and SpecCumul::XAxisDefinition().

double Spec1Dim::Xmin ( ) const

inlinevirtual

Retourne la valeur minimum de la dimension X.

References x_min.

Referenced by Spectrum::Compare(), GEVSpectrumEditor::Copy(), SpecTrace::DefinitionString(), SpecMono::DefinitionString(), SpecDistrib::DefinitionString(), SpecUser1D::DefinitionString(), SpecBidim::DefinitionString(), SpecCumul::DefinitionString(), SpecUser2D::DefinitionString(), SpecTridim::DefinitionString(), SpectrumList::SetBoundLen(), SpecOper::SetHisto(), SpecOper2::SetHistoXY(), SpecUser1D::SetValue(), SpecUser2D::SetValue(), SpecUser1D::XAxisDefinition(), SpecUser2D::XAxisDefinition(), SpecMono::XAxisDefinition(), SpecBidim::XAxisDefinition(), SpecDistrib::XAxisDefinition(), SpecTridim::XAxisDefinition(), and SpecCumul::XAxisDefinition().

double Spec1Dim::Xmax ( ) const

inlinevirtual

Retourne la valeur maximum de la dimension X.

References x_max.

Referenced by Spectrum::Compare(), GEVSpectrumEditor::Copy(), SpecTrace::DefinitionString(), SpecMono::DefinitionString(), SpecDistrib::DefinitionString(), SpecUser1D::DefinitionString(), SpecBidim::DefinitionString(), SpecCumul::DefinitionString(), SpecUser2D::DefinitionString(), SpecTridim::DefinitionString(), SpectrumList::SetBoundLen(), SpecOper::SetHisto(), SpecOper2::SetHistoXY(), SpecUser1D::XAxisDefinition(), SpecUser2D::XAxisDefinition(), SpecMono::XAxisDefinition(), SpecDistrib::XAxisDefinition(), SpecBidim::XAxisDefinition(), SpecTridim::XAxisDefinition(), and SpecCumul::XAxisDefinition().

int Spec1Dim::BinX ( const Data &  d ) const

virtual

Retourne le bin correspondant à la valeur d'une donnée. Si la valeur est hors des limites, la méthode renvoie -1.

Parameters

d

donnée

References x_bin, x_max, and x_min.

string Spec1Dim::AxisDefinition ( const Param &  p, const u_int  dim, const double  min, const double  max  ) const

protected

Méthode générique qui retourne une chaîne décrivant un axe.

Parameters

p	paramètre de l'axe
dim	dimension de l'axe
min	limite inférieure de l'axe
max	limite supérieure de l'axe

References Spectrum::bound_len, Spectrum::bound_prec, Spectrum::dim_len, and Spectrum::param_name_len.

Referenced by SpecMono::XAxisDefinition(), SpecDistrib::XAxisDefinition(), SpecBidim::XAxisDefinition(), SpecTridim::XAxisDefinition(), SpecCumul::XAxisDefinition(), SpecBidim::YAxisDefinition(), SpecCumul::YAxisDefinition(), SpecTridim::YAxisDefinition(), and SpecTridim::ZAxisDefinition().

string Spec1Dim::AxisDefinition ( const string &  label, const u_int  dim, const double  min, const double  max  ) const

protected

Méthode générique qui retourne une chaîne décrivant un axe qui n'est pas associé au paramètre.

Parameters

label	nom de l'axe
dim	dimension de l'axe
min	limite inférieure de l'axe
max	limite supérieure de l'axe

References Spectrum::bound_len, Spectrum::bound_prec, Spectrum::dim_len, and Spectrum::param_name_len.

Spec1Dim::ClassDef	(	Spec1Dim	,
		0
	)

Définition à usage de ROOT...

---

The documentation for this class was generated from the following files:

• Spec1Dim.hh
• Spec1Dim.cpp
